Description

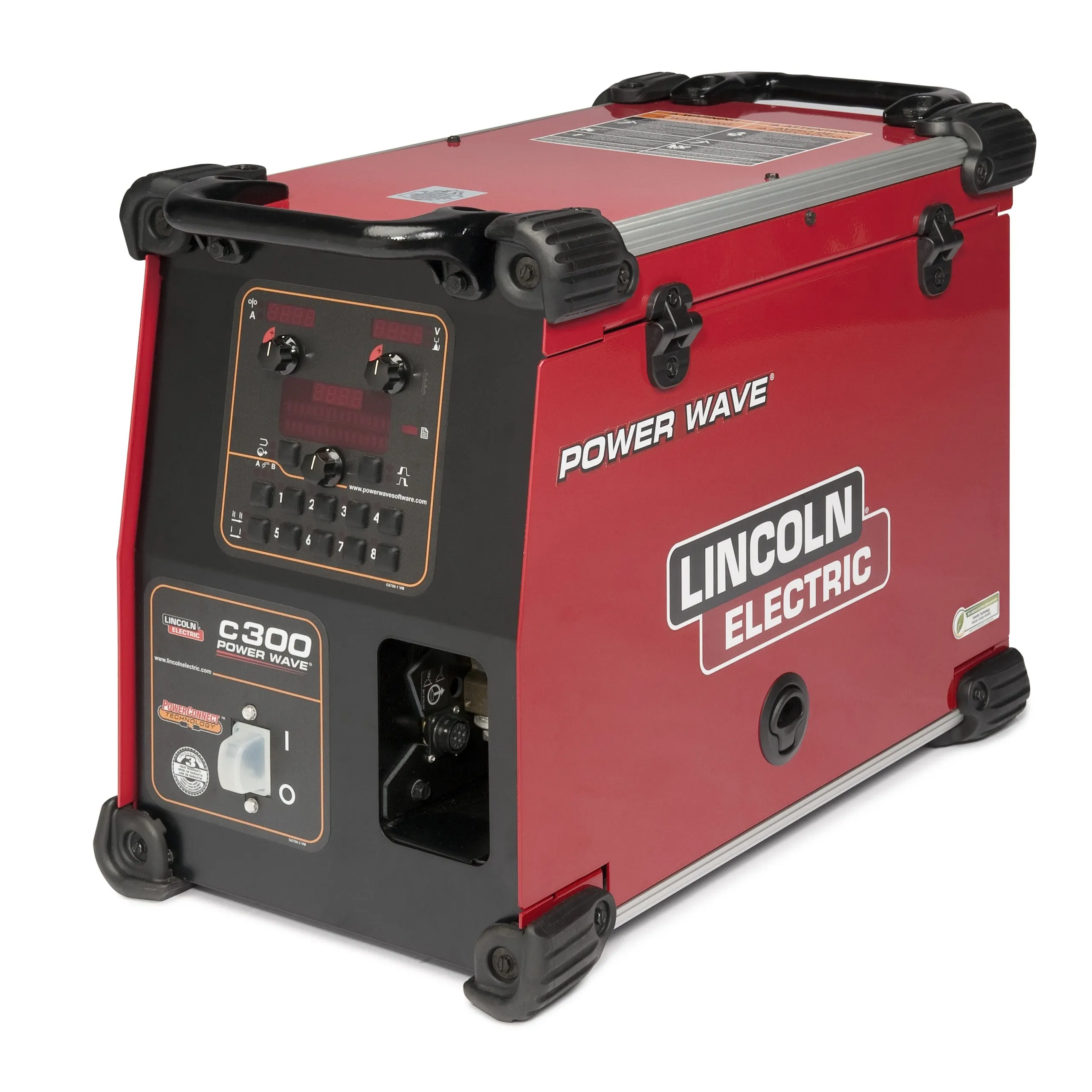

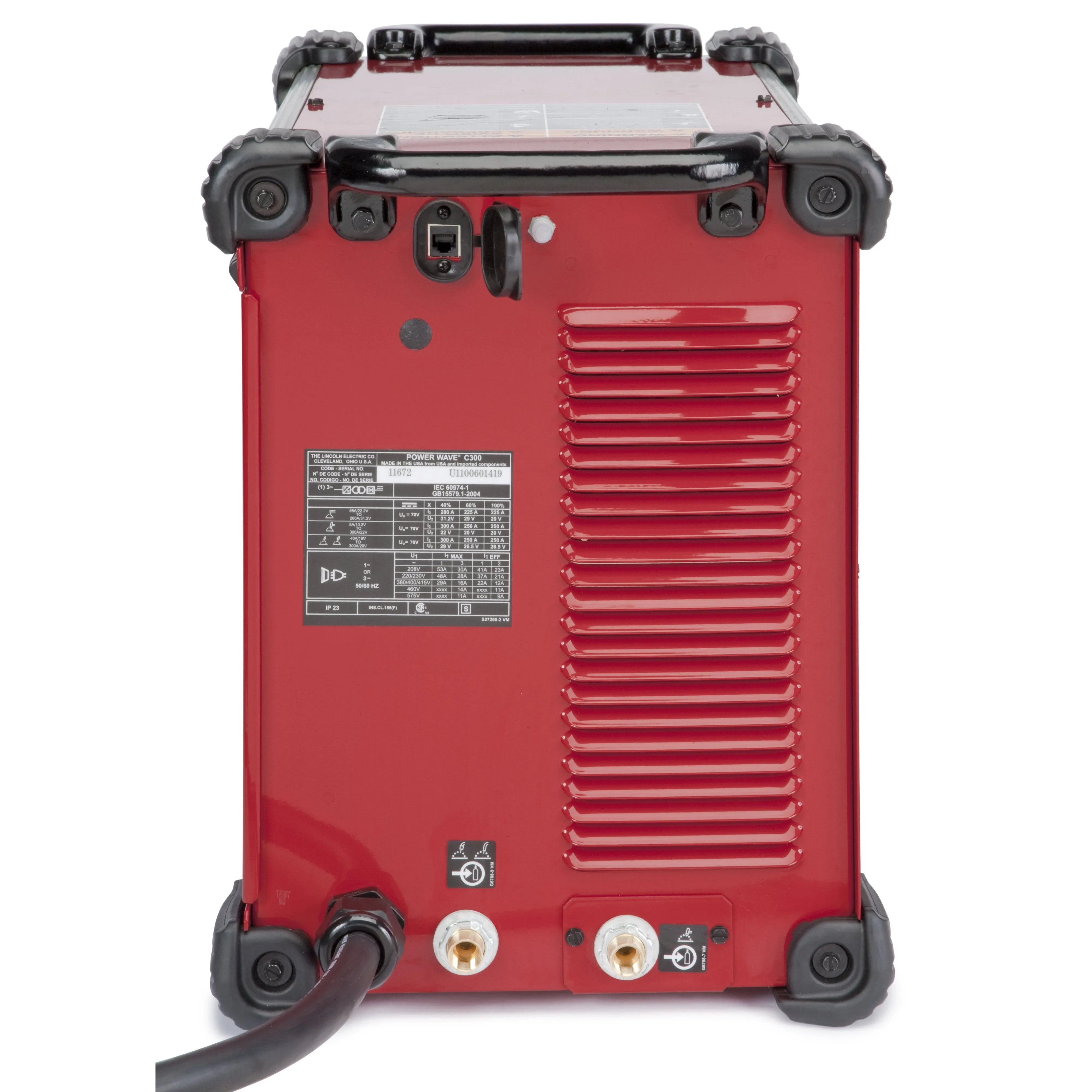

The Power Wave C300 is a portable multi-process wire feeder welder with high-end functionality capable of Stick, DC TIG, MIG, Pulsed MIG and Flux-Cored welding. It is ideal for a wide variety of materials including aluminum, stainless, and nickel where arc performance is critical. The Power Wave is well suited for production welding, general fabrication, construction, and training and education.The compact style and design adapt to almost any environment. The size offers the user a flexible system to take with you, wherever you need to weld

• Lincoln Electric's Universal 12 pin remote connector. This remote connector enables the use of the recently introduced K857-2 Remote Output Control, K870-2 Foot Amptrol, K963-4 Hand Amptrol and other existing analog remote devices.
• New Reversible Handles Protect the controls and ease two-person handling.
• A second solenoid for TIG or spool gun operation is now included.
• The new K2734-2 Understorage Cart has been modified to accommodate the additional gas fitting for TIG or spool gun. Note that the previous K2734-1 Understorage Cart cannot be used with the new K2675-2 Power Wave C300 base model.

• PowerConnect Technology (Patent-Pending) - Automatically adjusts to input power from 200 - 600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant through the entire input voltage range up to 43% and down to -60% when used on 460 VAC input.
• Tribrid Power Module - Exceptional welding performance at an industry leading 0.97 power factor and 88% efficiency at 250 amps.
• Production Monitoring 2 - Track equipment usage, store weld data, and configure limits to assist in welding efficiency analysis.

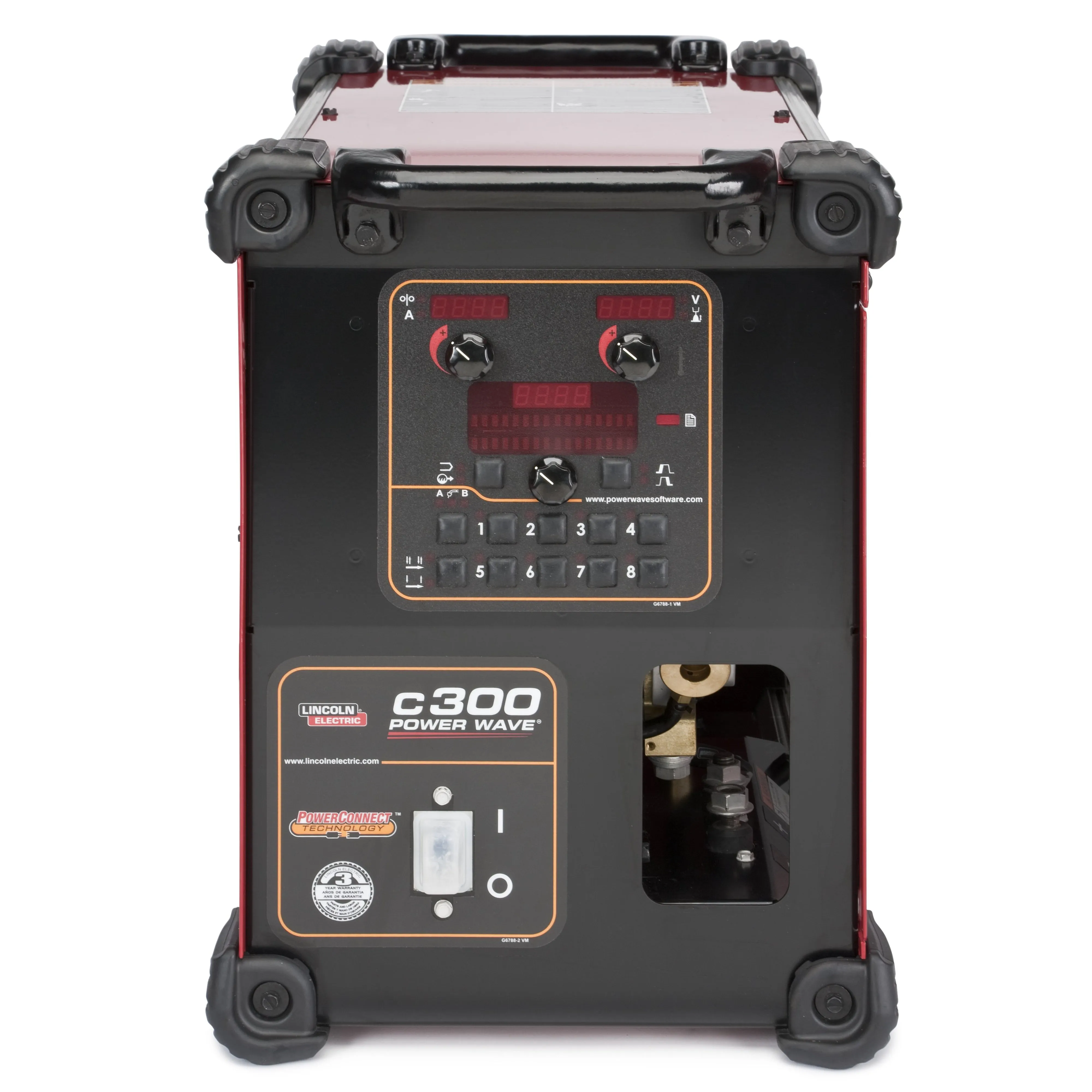

• iARC Digital Controls - Fast processing speed provides exceptional arc stability regardless of weld process. Ethernet connection now standard.
• Compact and Durable Case - IP23 rated to withstand harsh environments and maximize portability.

• Stick, DC TIG, Pulsed DC TIG, MIG, Pulsed MIG, Flux-Cored

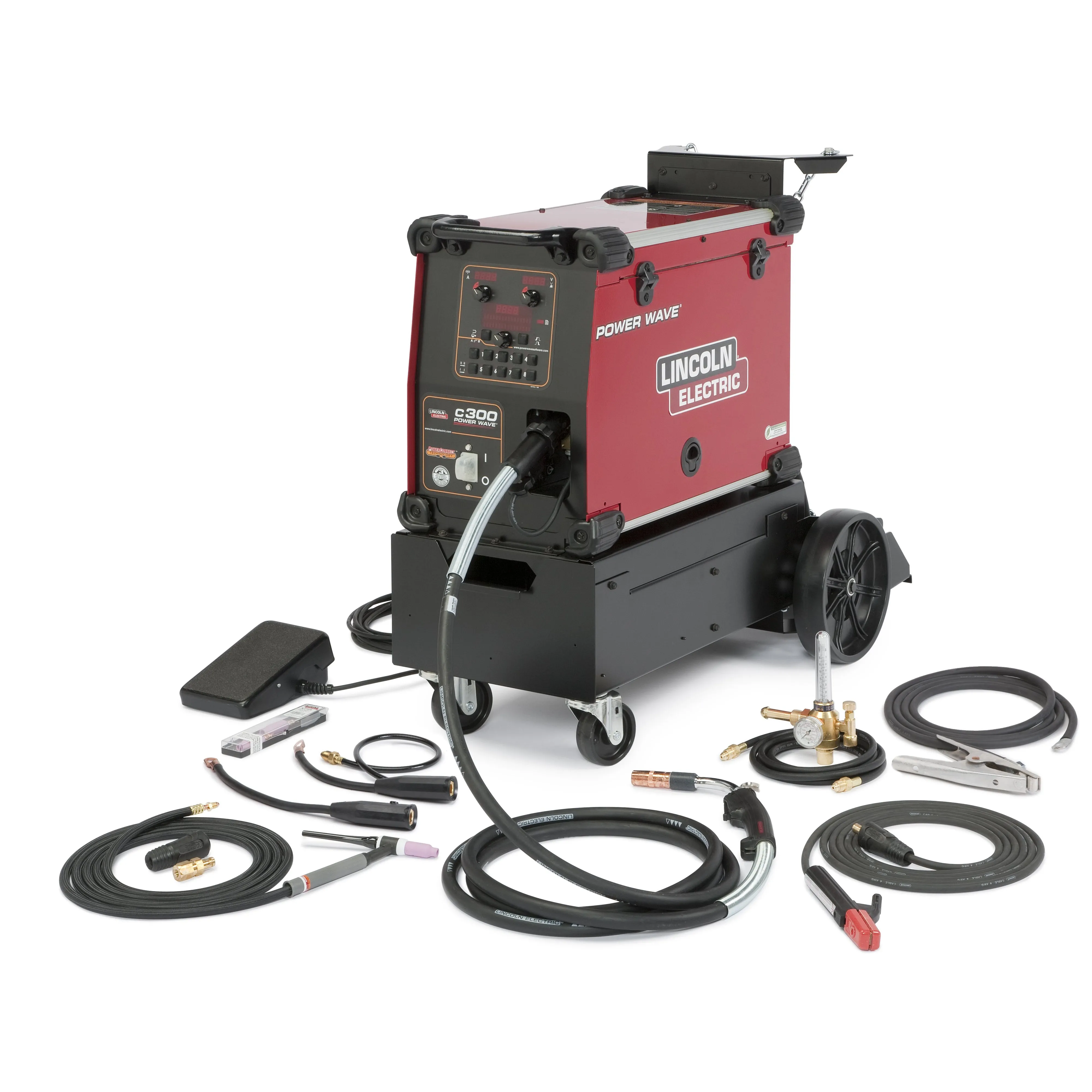

Included with Product

• K2675-2: Power Wave C300 Base Unit
• K2734-2: Understorage Cart
• K2951-2-6-45: Magnum PRO Curve 300 Gun Package w/Magnum PRO front end expendables
• K2505-3: TIG Torch Twist Mate-to-Stud adapter
• K1782-12: PTA-17 Pro-Torch TIG Torch with Ultra-Flex Cable, 12 ft. (3.7 m), 1 pc.
• K1622-1: Twist Mate Torch adapter
• KP508: Parts Kit For PTA-17 Series Torches
• Harris Flowmeter/Regulator & Hose
• K870-2: Foot Amptrol with 12-Pin
• K2374-1: Stick Electrode Holder and Cable (includes Twist Mate connector)
